Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

Name: Faster Long High Speed Stroke Slide Table with 01mm Precision Efficiency
Brand: SXEGL
Price: 350 USD

Quality Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency for sale

Brand Name : SXEGL

Model Number : PTB17

Certification : CE/ROSH/FCC/EPA/ISO

Place of Origin : China

MOQ : 1

Price : 350-550

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : Worldwide delivery

Delivery Time : 7-14

Packaging Details : Carton with foam

Max speed(mm/s) : 2000

Rated thrust (N) : 204

Standard stroke(mm) : 20-3050mm/50 interval

Belt width : 30

High rigidity linear slider : W20×H15

Origin sensor Plug : PM-T45(NPN)

Contact Now

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

As a core transmission component for high-speed material handling and precision positioning in industrial automation, the PTB Synchronous Belt Slide establishes a new performance paradigm for mid-high-end linear motion modules with its three technical cornerstones: high-load, ultra-high-speed, and strong-thrust. Through innovative integration of high-rigidity mechanical structures and efficient transmission systems, it achieves threefold technological breakthroughs: 200KG horizontal dynamic load capacity, 2311mm/s ultra-high speed, and 1126N strong thrust output, with a full stroke range of 50-4000mm to precisely adapt to rigorous application scenarios in logistics sorting, automotive assembly, and electronic component mounting.

Typical Application Scenarios

① Intelligent Logistics Sorting Hub

In automated sorting centers, the PTB Slide serves as the core main transmission shaft component, driving sorting trolleys at 2311mm/s ultra-high speed while effortlessly handling full cartons with its 200KG load capacity. The 1126N peak thrust ensures millisecond-level response for sorting baffles, boosting parcel processing capacity from 2,500 to 8,000 pieces per hour – a radical breakthrough in logistics sorting efficiency.

② Precision Automotive Component Assembly Line

At engine block handling stations, the PTB Slide’s dual-guide high-rigidity framework and 200KG load capacity form a golden combination, stably transporting engine blocks across workstations from machining to assembly. Its ±0.1mm repeat positioning accuracy perfectly matches bolt hole alignment requirements, providing a reliable mechanical foundation for high-precision automotive powertrain assembly.

③ High-Precision Electronic Component Mounting Equipment

In FPC flexible board pressing scenarios, the PTB Slide’s 1126N strong thrust output and 45mm-wide synchronous belt ensure 0.1mm-level pressing precision, completely resolving issues like false pressing and misalignment caused by insufficient thrust in traditional slides. This makes it a critical process enabler for manufacturing precision electronic devices such as Mini LED and 5G modules.

Core Technical Advantages

1. High-Rigidity Heavy-Duty Transmission System

Featuring an integrated design of double-row high-rigidity linear sliders and thickened aluminum alloy base plates, with slider-guide rail contact surfaces ultra-precision ground (Ra≤0.2μm), and paired with a 45mm-wide PM-type high-tension synchronous belt, it constructs a 200KG horizontal dynamic load platform. Even when carrying heavy workpieces like automotive gearboxes or large battery modules, full-stroke deflection deformation is controlled within 0.1mm/m, ensuring low vibration and high stability during high-speed movement.

2. Ultra-High-Speed Transmission Technology Breakthrough

Equipped with a low-inertia servo motor direct-drive system and high-tension synchronous belt, achieving 97% transmission efficiency, combined with a lightweight aluminum alloy slider design, the maximum linear speed breaks through 2311mm/s – a 30% speed increase over conventional synchronous belt slides. In high-tempo scenarios like logistics sorting, it enables continuous high-speed sorting of 6,000 parcels per hour – tripling efficiency compared to traditional chain conveying solutions and setting a new benchmark for high-speed handling.

3. Full-Stroke Modular Adaptation Solution

Innovatively adopting a modular rail splicing design, the stroke range can be flexibly configured between 50-4000mm:

Short strokes (50-500mm) meet high-precision needs for tasks like precision dispensing and visual inspection.
Long strokes (1000-4000mm) adapt to intelligent warehouse conveying and cross-station handling in automotive assembly lines.
Standardized interface designs support rapid integration with multi-axis linkage systems, significantly reducing automation equipment R&D cycles.

Technical Specifications

Rooted in German Industry 4.0 design principles, the PTB Synchronous Belt Slide achieves a perfect balance of speed-load-precision in high-speed handling scenarios through material innovation (aviation-grade aluminum alloy base plates), transmission optimization (low-friction sliders), and structural reinforcement (dual-guide anti-torsion design). Whether applied to high-tempo logistics sorting lines or micron-level precision electronic assembly equipment, the PTB Slide stands as the preferred solution for industrial automation upgrades, driven by its exceptional performance.

※ Basic specifications
Specification	Repeatable positioning accuracy(mm)		±0.08
	Lead (mm)		40
	Max speed(mm/s)		2000
	Max load(kg)	Horizontal	45
		Vertical	-
	Rated thrust (N)		204
	Standard stroke(mm)		20-3050mm/50 interval
Component	AC servo motor capacity		400
	Belt width		30
	High rigidity linear slider		W20×H15
	Origin sensor Plug		PM-T45(NPN)

(Unit:mm) (Unit:mm)

Horizontal installation	A	B	C	Side installation	A	B	C
10kg	2942	1133	1033	15kg	676	742	1933
20kg	1430	547	498	25kg	390	428	1127
30kg	926	350	320	35kg	269	294	781
45kg	588	219	201	45kg	201	219	588

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

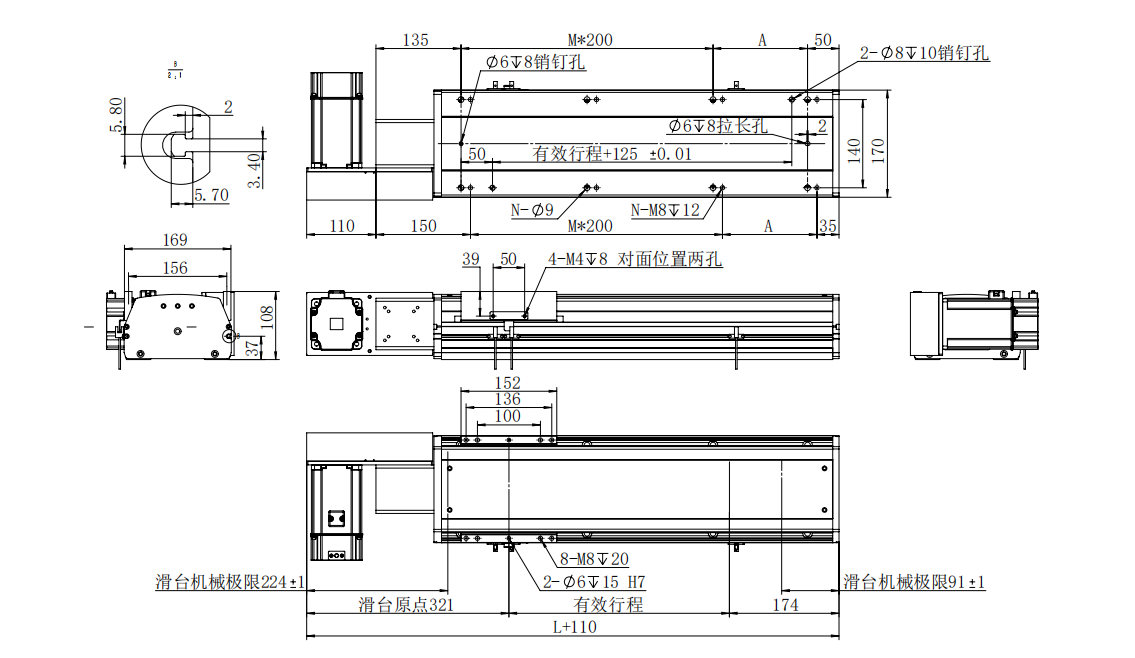

Motor folds right

Stroke	50	100	150	200	250	300	350	400	450	500	550	600		650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985		1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200		50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3		4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10		12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8		21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000	1050		1100		1150		1200		1250		1300		1350		1400	1450	1500	1550
L	1285		1335		1385	1435		1485		1535		1585		1635		1685		1735		1785	1835	1885	1935
A	100		150		200	50		100		150		200		50		100		150		200	50	100	150
M	5		5		5	6		6		6		6		7		7		7		7	8	8	8
N	14		14		14	16		16		16		16		18		18		18		18	20	20	20
KG	25.4		26.2		27	27.8		28.6		29.4		30.2		31		31.8		32.6		33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100		2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485		2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100		150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11		11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26		26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6		45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550	2600		2650		2700		2750		2800		2850		2900		2950	3000	3050
L	2835		2885		2935	2985		3035		3085		3135		3185		3235		3285		3335	3385	3435
A	50		100		150	200		50		100		150		200		50		100		150	200	50
M	13		13		13	13		14		14		14		14		15		15		15	15	16
N	30		30		30	30		32		32		32		32		34		34		34	34	36
KG	50.2		51		51.8	52.6		53.4		54.2		55		55.8		56.6		57.4		58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

Motor right up

Stroke	50	100	150	200	250	300	350	400	450	500	550	600		650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985		1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200		50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3		4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10		12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8		21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000			1050		1100		1150			1200		1250	1300	1350	1400	1450	1500	1550
L	1285		1335		1385			1435		1485		1535			1585		1635	1685	1735	1785	1835	1885	1935
A	100		150		200			50		100		150			200		50	100	150	200	50	100	150
M	5		5		5			6		6		6			6		7	7	7	7	8	8	8
N	14		14		14			16		16		16			16		18	18	18	18	20	20	20
KG	25.4		26.2		27			27.8		28.6		29.4			30.2		31	31.8	32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100		2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485		2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100		150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11		11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26		26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6		45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500			2550		2600		2650			2700		2750		2800	2850	2900	2950	3000	3050
L	2835		2885			2935		2985		3035			3085		3135		3185	3235	3285	3335	3385	3435
A	50		100			150		200		50			100		150		200	50	100	150	200	50
M	13		13			13		13		14			14		14		14	15	15	15	15	16
N	30		30			30		30		32			32		32		32	34	34	34	34	36
KG	50.2		51			51.8		52.6		53.4			54.2		55		55.8	56.6	57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

Motor folds left

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985	1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200	50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3	4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10	12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8	21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000		1050		1100		1150		1200		1250		1300		1350	1400	1450	1500	1550
L	1285		1335		1385		1435		1485		1535		1585		1635		1685		1735	1785	1835	1885	1935
A	100		150		200		50		100		150		200		50		100		150	200	50	100	150
M	5		5		5		6		6		6		6		7		7		7	7	8	8	8
N	14		14		14		16		16		16		16		18		18		18	18	20	20	20
KG	25.4		26.2		27		27.8		28.6		29.4		30.2		31		31.8		32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485	2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100	150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11	11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26	26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6	45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550		2600		2650		2700		2750		2800		2850		2900	2950	3000	3050
L	2835		2885		2935		2985		3035		3085		3135		3185		3235		3285	3335	3385	3435
A	50		100		150		200		50		100		150		200		50		100	150	200	50
M	13		13		13		13		14		14		14		14		15		15	15	15	16
N	30		30		30		30		32		32		32		32		34		34	34	34	36
KG	50.2		51		51.8		52.6		53.4		54.2		55		55.8		56.6		57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

Motor folds left up

Stroke	50	100	150	200	250	300		350	400	450	500	550	600	650		700		750		800		850
L	435	485	535	585	635	685		735	785	835	885	935	985	1035		1085		1135		1185		1235
A	50	100	150	200	50	100		150	200	50	100	150	200	50		100		150		200		50
M	1	1	1	1	2	2		2	2	3	3	3	3	4		4		4		4		5
N	6	6	6	6	8	8		8	8	10	10	10	10	12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1		16.9	17.7	18.5	19.2	20	20.8	21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000		1050		1100		1150		1200		1250		1300		1350	1400	1450	1500	1550
L	1285		1335		1385		1435		1485		1535		1585		1635		1685		1735	1785	1835	1885	1935
A	100		150		200		50		100		150		200		50		100		150	200	50	100	150
M	5		5		5		6		6		6		6		7		7		7	7	8	8	8
N	14		14		14		16		16		16		16		18		18		18	18	20	20	20
KG	25.4		26.2		27		27.8		28.6		29.4		30.2		31		31.8		32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850		1900	1950	2000	2050	2100	2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235		2285	2335	2385	2435	2485	2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50		100	150	200	50	100	150		200		50		100		150		200
M	8	9	9	9	9	10		10	10	10	11	11	11		11		12		12		12		12
N	20	22	22	22	22	24		24	24	24	26	26	26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6		41.4	42.2	43	43.8	44.6	45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550		2600		2650		2700		2750		2800		2850		2900	2950	3000	3050
L	2835		2885		2935		2985		3035		3085		3135		3185		3235		3285	3335	3385	3435
A	50		100		150		200		50		100		150		200		50		100	150	200	50
M	13		13		13		13		14		14		14		14		15		15	15	15	16
N	30		30		30		30		32		32		32		32		34		34	34	34	36
KG	50.2		51		51.8		52.6		53.4		54.2		55		55.8		56.6		57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency
